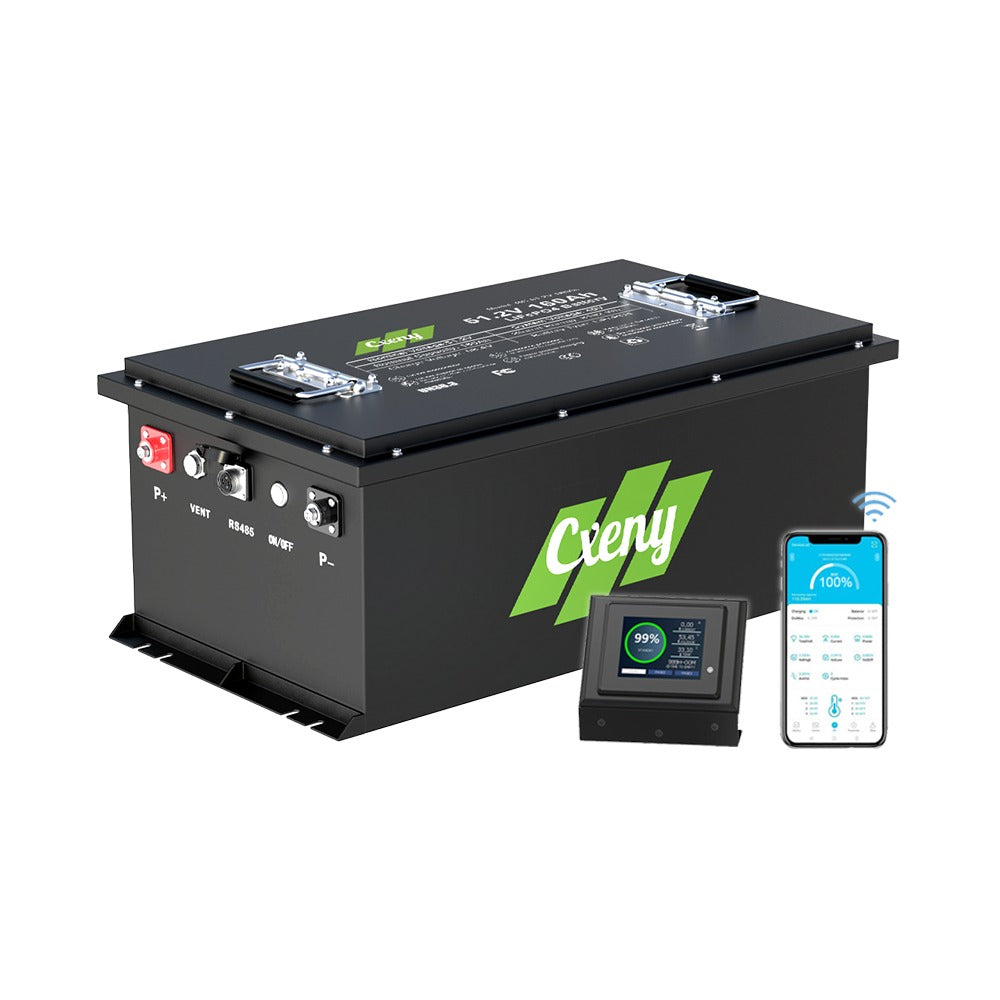

Cxeny 48V 160Ah Lithium Golf Cart Battery 200A Bluetooth BMS With Touch Monitor
SKU:48V-160AH-1
• 6-Year Protection Plan – 5-year warranty included, plus 1 extra year free when you register your battery after purchase.
• 200A Continuous / 400A Peak Output – Handles steep hills, heavy loads, and rough terrain with consistent power you can rely on.
• Monitor Everything via App or LCD – Check battery level, voltage, temperature, and cycle count directly from your phone or the included 2.8-inch display.
• Up to 100 Miles on a Full Charge – 8.19kWh capacity covers multiple rounds, daily commutes, or a full day of work without needing to top up.
• 8,000+ Cycles – That's 16x Lead-Acid – With Grade A LiFePO4 cells, this battery lasts 16 times longer than standard lead-acid, saving you money on replacements.
• Compact Size, Standard Fit – Measures 22.83 × 13.19 × 10.35 inches, designed to slide into most stock 48V golf cart battery trays with no modifications.
• 135 lbs – Only 1/3 the Weight of Lead-Acid – At just 135 lbs, it saves over 270 lbs compared to an equivalent lead-acid setup. Easier on your cart and simpler to install.

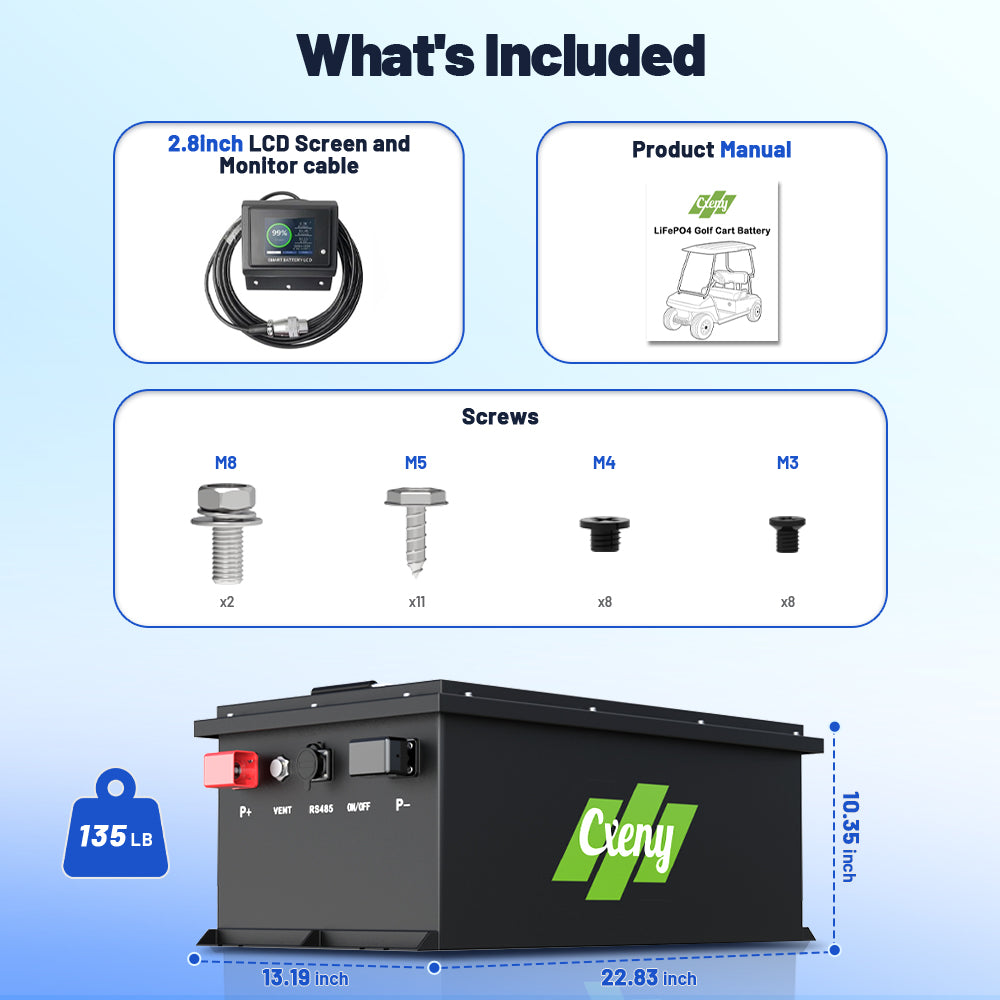

• Everything You Need — Included – Battery, 2.8-inch LCD display, mounting screws, and product manual are all included. Charger is sold separately — choose the right one for your needs.
Couldn't load pickup availability
Related Products

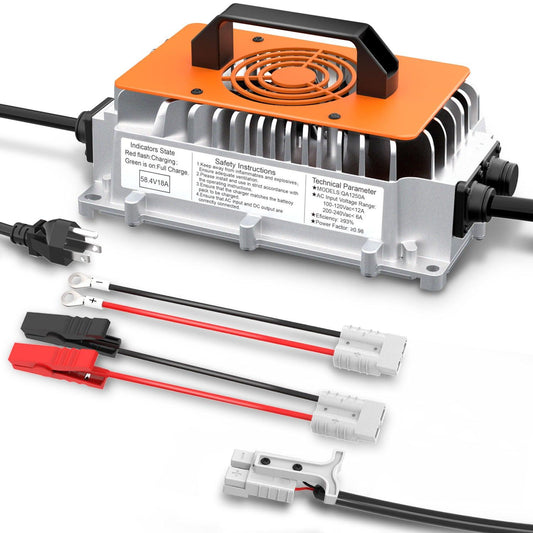

Cxeny 58.4V 18A Lithium Battery Charger IP65 Waterproof Safety Protection For Golf Cart Battery
Regular price $169.99 USDRegular price$249.99 USDSale price $169.99 USDSale
Free Shipping
Free Shipping
1. Free shipping is available on all orders, except for Hawaii (HI), Alaska (AK), and Puerto Rico (PR).
2. Delivery takes 2-7 business days.
3. We offer a signature-on-delivery service for all products.
CXENY 48V 160Ah LiFePO4 Golf Cart Battery
⚡ 100+ Mile Range · 💨 Lightweight Design · 🧠 JBD 200A BMS · 🔥 8,000+ Cycles · 🛡️ 6-Year Warranty (5+1 with Registration)
Battery Only — Use with Your Existing 48V LiFePO₄ Charger
Extended warranty requires free online registration within 30 days of purchase.
🔋 CXENY 51.2V 160Ah LiFePO₄ Battery — Maximum Range, Battery Only

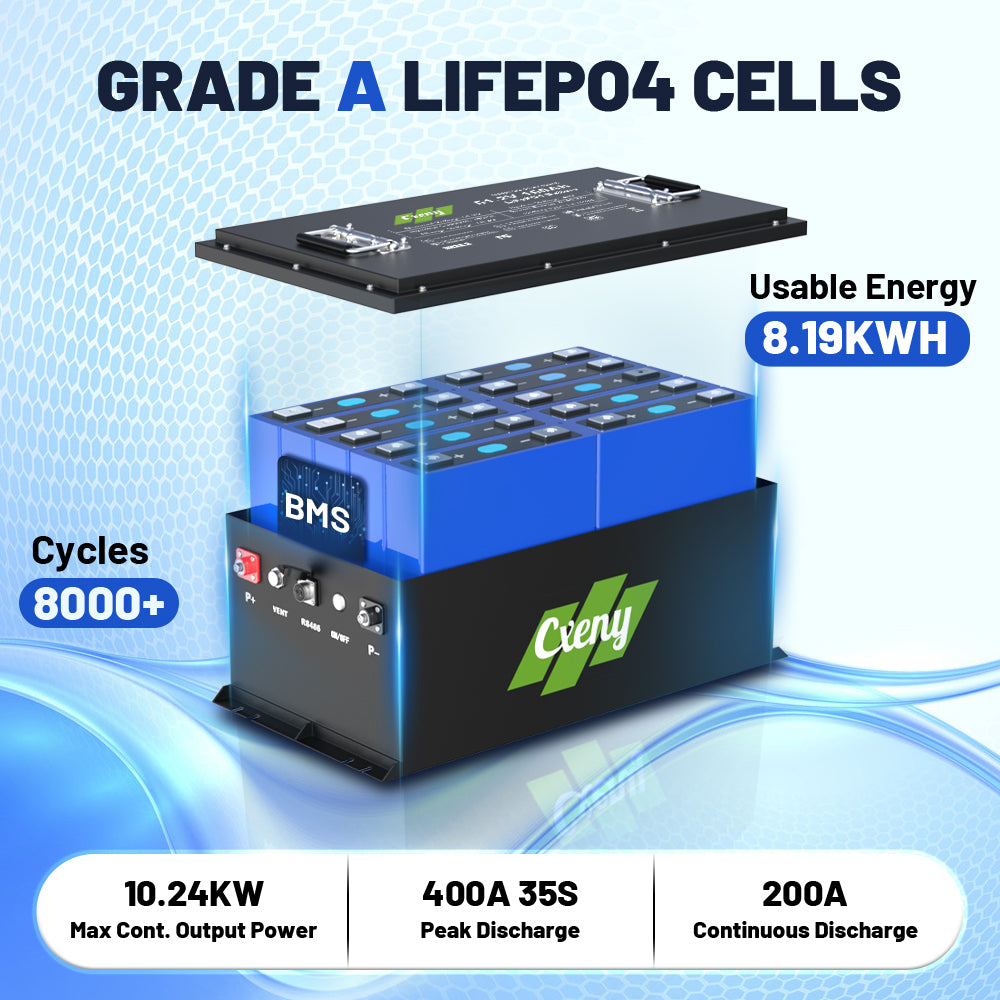

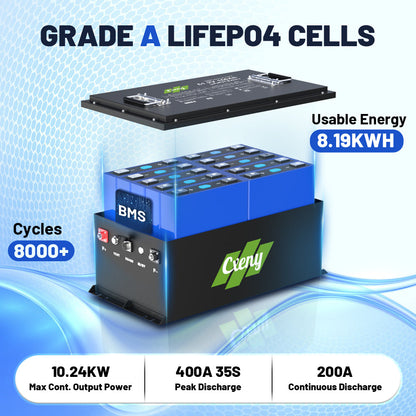

This CXENY Grade A LiFePO₄ battery delivers 8.19kWh usable energy, 400A peak discharge, and 8,000+ cycles. Equipped with a JBD 200A continuous BMS for safety and 10.24kW max power. Battery only — use with your existing 48V LiFePO₄ charger.
Compatible with: Club Car ✅ · EZGO ✅ · Yamaha ✅ · Star EV ✅ · Cushman ✅
🔋 Why Choose the 160Ah Battery — Maximum Range
The 160Ah battery delivers 100+ miles of range — perfect for commercial fleets, lifted carts with 22"+ tires, and extreme hill climbing.
- ✅ 100+ mile range — the highest capacity in the CXENY lineup
- ✅ Battery only — use with your existing 48V LiFePO₄ charger
- ✅ Same JBD 200A high-current architecture as larger packs
- ✅ Ideal for commercial use, resorts, and maximum-range applications
- ✅ 8.19kWh usable energy for extended operation
🛡️ 6-Year Total Coverage (5+1 Extended with Free Registration)
Extended warranty requires free online registration within 30 days of purchase.
📋 Key Specifications
| Voltage | 51.2V |
| Capacity | 160Ah (8.19kWh) |
| Weight | Lightweight design — approximately 1/3 the weight of lead-acid |
| Max Output | 10.24kW |
| BMS | JBD 200A Continuous / 400A Peak |
| Cycle Life | 8,000+ cycles |
| Warranty | 6-Year Total Coverage (5+1 with Free Registration) |
🔒 Military-Grade Aluminum Housing
Shockproof, vibration-resistant, waterproof — built for real golf cart conditions.

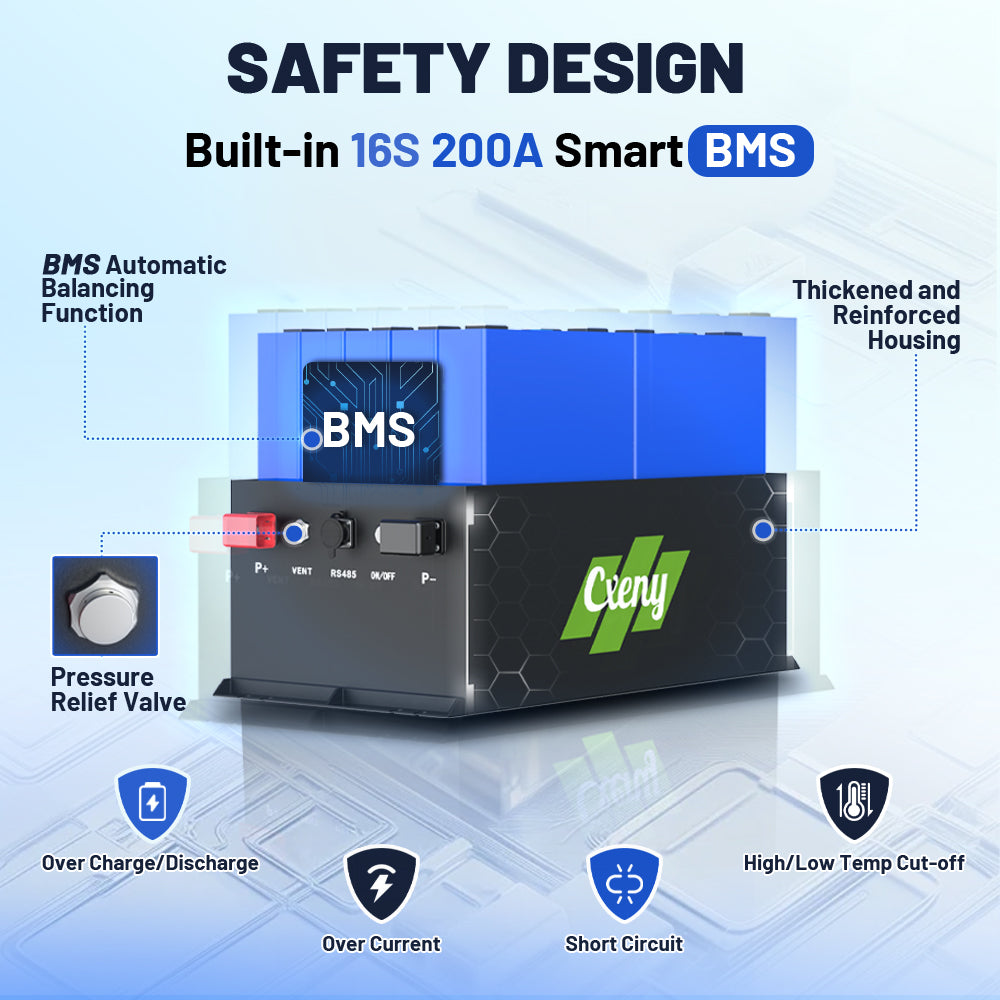

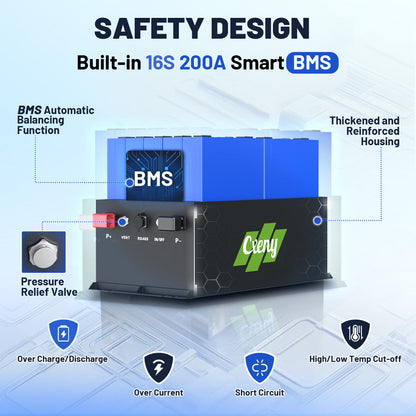

🧠 JBD 200A Smart BMS Protection
Equipped with a heavy-duty 16S 200A BMS, it provides multi-layer protection against overcharge, over-discharge, short circuit, overcurrent, and overheating, ensuring safe and reliable operation at all times.

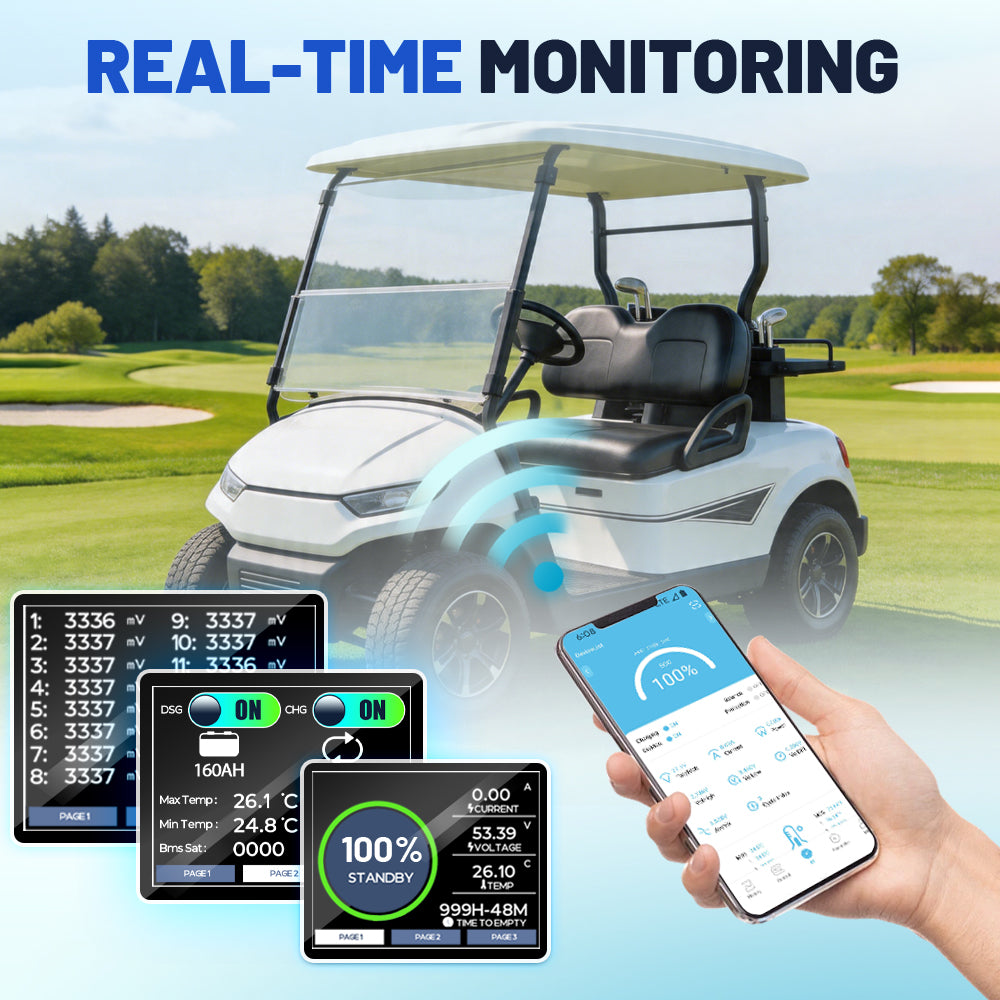

📱 Smart Bluetooth Monitoring
Support remote mobile APP control, allowing you to check voltage, current, temperature, SOC (State of Charge), and protection status anytime, anywhere — stay in full control of your battery's performance.
⚡ 100km Industry-Leading Long Range
Equipped with a 160Ah high-capacity LiFePO₄ cell, this battery delivers an impressive 100km single-charge range — enough to power full-day golf rounds, extended off-road trips, and heavy-duty use without frequent recharging or range anxiety.
🔌 Plug & Play Upgrade
Crafted specifically as a direct replacement for 48V golf carts, this LiFePO₄ battery perfectly matches factory specifications, ensuring seamless compatibility with major golf cart brands including Club Car, E-Z-GO, Yamaha, Cushman, and Star EV. No extra adapters or modifications are needed for a hassle-free upgrade.
🔋 Versatile Compatibility: Beyond Golf Carts
This 48V 160Ah LiFePO₄ battery fits lawn mowers, forklifts, marine vessels & other 48V devices, with scalable modular design for recreation and industry.
✅ Who Should Choose the 160Ah Battery?
100+ miles of range is designed for specific use cases:
- ✅ Commercial fleets — resorts, golf courses, rental operations
- ✅ Lifted carts with 22"+ tires — extra range compensates for increased rolling resistance
- ✅ Extreme hill terrain — more capacity for sustained climbing
- ✅ Heavy passenger loads — up to 4 passengers plus gear
- ✅ Battery only — perfect if you already have a 48V LiFePO₄ charger
⚡ Most owners don't need 160Ah. If you're a standard user (75–85 miles is enough), the 125Ah Kit is the right choice for you.
📍 Real-World Scenarios — Where 160Ah Excels
- Resort / Commercial Fleet: Multiple rounds, multiple drivers, all-day operation — no mid-day charging required.
- Lifted Cart with 22" Tires: Big tires drain power faster. 160Ah compensates with 100+ mile range — no range anxiety.
- Extreme Hills: Steep terrain consumes more energy. The 160Ah battery provides sustained climbing power without early cut-off.
- Heavy Loads (4 passengers + gear): The 200A continuous JBD BMS handles full loads without voltage sag.
Ready to Check Compatibility?
💡 The 160Ah battery is the right choice for commercial use, lifted carts, and extreme terrain.
👉 Check Compatibility & Buy Now100+ mile range · JBD 200A BMS · 6-Year Warranty (5+1 with Registration)
🚚 Free Shipping · 🇺🇸 US Stock · 2-7 Business Day Delivery
30-Day Returns · 6-Year Warranty (5+1 with Registration) · US-Based Support
❓ Frequently Asked Questions
How long does the 160Ah battery last?
Typically 8–12 years or 8,000+ cycles under normal golf cart usage.
Will it fit my golf cart?
Yes. Compatible with Club Car, EZGO, Yamaha, Star EV, Cushman, and most 48V systems.
How far can I drive on a single charge?
100+ miles depending on terrain, load, and driving style.
What does the 5+1 warranty mean?
5-year full manufacturer warranty plus 1-year extended protection when you register online within 30 days of purchase. Total 6-year coverage. Registration is free.
Is installation difficult?
No. Direct drop-in replacement. Most users install in 1–2 hours with basic tools. Manual included.
What BMS does this battery use?
This battery uses a JBD Smart BMS — an industry-leading brand known for reliability and safety in lithium battery systems.
Do I need 160Ah or is 125Ah enough?
If you need 100+ miles of range, commercial use, lifted carts with 22"+ tires, or extreme hill climbing, 160Ah is the right choice. For standard daily use, 125Ah is sufficient for 90% of users.
What charger do I need for this battery?
This is a battery-only option. You'll need a 48V LiFePO₄ charger with CC-CV charging profile (absorption voltage ~58.4V). If you don't have one, we recommend the 160Ah Kit with Charger instead.
Ready to Upgrade to Maximum Range?
The 160Ah battery delivers 100+ miles of range — ideal for commercial fleets, lifted carts, and extreme terrain. Battery only — use with your existing 48V LiFePO₄ charger.
✔ 100+ mile range — maximum capacity
✔ Battery only — use with your existing charger
✔ 6-Year Warranty (5+1 with Registration)
| Item | Specification |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 160Ah |
| Energy | 8.192kWh |
| Max Continuous Output Power | 10.24kW |
| BMS | 16S 200A |
| Charge Voltage | 58.4V (3.65V/cell) |
| Discharge Cut-off Voltage | 40V (2.50V/cell) |
| Recommended Charging Current | ≤80A (0.5C) |
| Recommended Discharging Current | ≤160A (1C) |
| Max. Charging Current | 160A |
| Max. Continuous Discharge Current | 200A |
| Peak Discharge 35 Sec | 400A |
| Operating Temperature Range | Charge: 32°F to 113°F (0°C to 45°C); Discharge: -4°F to 140°F (-20°C to 60°C) |
| Cycle Life | ≥8000 Cycles |
| Communication | Bluetooth, RS485 |
| Dimensions | 22.83*13.19*10.35 inch / 580*335*263 mm |
| Safety Features | Over charge/discharge, Over current, Short circuit, High/low temp cut-off |
| Series Connectable | Not Support |
| Package List | 51.2V 160Ah Golf Cart Battery, Product Manual, 2.8in LCD Screen and Monitor cable, Display Bracket, Screws |
Does it come with a charger?
▼
Does it come with a charger?
Not all listings include a charger. Please check the listing description or consult customer service.
Is this battery compatible with all golf cart models?
▼
Is this battery compatible with all golf cart models?
Cxeny golf cart batteries are compatible with 99% of well-known brand golf carts, such as Club Car, E-Z-GO, Yamaha, Cushman, Star EV, etc. Other brands are generally also compatible. If you have any questions, please consult customer service.
Does it have a monitoring system?
▼
Does it have a monitoring system?
Yes, the battery has two monitoring methods: one is monitoring via a mobile app, and the other is viewing the battery status and health through a dedicated golf cart battery touchscreen display.
Can I replace my lead-acid batteries directly with lithium?
▼
Can I replace my lead-acid batteries directly with lithium?
Generally, yes, but you must ensure the voltage matches (e.g., 36V or 48V) and use a dedicated lithium-ion battery charger.
Can this battery be used in marine applications?
▼
Can this battery be used in marine applications?
Yes. Our LiFePO₄ batteries are suitable for marine applications such as fishing boats and electric vessels. Please ensure the installation environment is dry and well-ventilated, and avoid prolonged exposure to water or submersion. For saltwater environments, additional protective measures are recommended.
Should I fully drain the battery before charging? What is the expected lifespan of the battery?
▼
Should I fully drain the battery before charging? What is the expected lifespan of the battery?
We recommend keeping the battery's state of charge (SOC) above 10% and avoiding complete discharge—when the voltage drops too low, the battery management system (BMS) will automatically cut off power output to protect the battery. Under normal usage conditions, Cxeny lithium iron phosphate batteries have a cycle life of over 8,000 cycles and a service life of over 10 years, depending on usage frequency, depth of discharge, and maintenance.
Is this battery easy to install?
▼
Is this battery easy to install?
Installation is straightforward, and the battery can typically directly replace the original lead-acid battery pack. Ensure voltage compatibility (e.g., 36V/48V) and use a dedicated lithium battery charger.
Do I need a new charger for lithium batteries? Can I still use my old lead-acid charger?
▼
Do I need a new charger for lithium batteries? Can I still use my old lead-acid charger?
We recommend using a dedicated lithium battery charger. Lead-acid chargers have a charging profile unsuitable for lithium batteries and may affect battery life or safety over time.
How do I store the battery during winter/off-season?
▼
How do I store the battery during winter/off-season?
We recommend storing the battery at 50%--80% charge in a dry, non-corrosive environment with temperatures between 0°C and 25°C. Check the charge level every 2--3 months and recharge if necessary.
How does cold weather affect performance?
▼
How does cold weather affect performance?
In cold environments (below 0°C), battery capacity may temporarily decrease and charging efficiency may be reduced, but the device will still function normally. To maintain battery performance and lifespan, we recommend avoiding prolonged use or charging in cold temperatures.
Will a lithium battery make my cart climb hills better?
▼
Will a lithium battery make my cart climb hills better?
Yes. Lithium batteries provide more stable voltage output during hill climbing, with significantly less voltage drop compared to lead-acid batteries, resulting in stronger and more consistent power on inclines.
How steep of a hill can this battery handle?
▼
How steep of a hill can this battery handle?
The actual climbing ability depends primarily on motor power, controller, and total load. Cxeny lithium batteries do not inherently limit gradient capability.
Why does my cart slow down going uphill with lead-acid but not with lithium?
▼
Why does my cart slow down going uphill with lead-acid but not with lithium?
Lead-acid batteries experience a significant voltage drop under high-current discharge, reducing motor power. In contrast, lithium batteries have low internal resistance and maintain stable voltage, enabling sustained power output and consistent speed on inclines.
Does a higher Ah battery help with hills?
▼
Does a higher Ah battery help with hills?
To some extent. A higher capacity battery can provide more stable discharge voltage and longer sustained high-current output, which is beneficial for long-distance or frequent hill climbing.
Is this battery good for lifted carts or utility carts that climb hills often?
▼
Is this battery good for lifted carts or utility carts that climb hills often?
Yes. Cxeny lithium batteries offer strong high-current discharge capability and stable voltage, making them ideal for lifted carts, utility carts, or applications involving frequent hill climbing.
Will climbing hills with passengers damage the battery?
▼
Will climbing hills with passengers damage the battery?
No. As long as the battery is used within its rated discharge current, climbing with passengers is a normal operating condition. The built-in BMS protects the battery from overcurrent, overheating, and other potential issues.
Why does my battery get warm when climbing long hills?
▼
Why does my battery get warm when climbing long hills?
During prolonged hill climbing, the battery continuously discharges at high current, generating some heat. This is normal. Cxeny lithium batteries use high-quality cells and thermal management, producing significantly less heat than lead-acid batteries. If temperature rises abnormally, the BMS will activate protection.
Is lithium better than lead-acid for hills?
▼
Is lithium better than lead-acid for hills?
Yes. Lithium batteries offer more stable voltage, stronger power output, less heat generation, and longer range on hills, delivering significantly better overall performance than lead-acid batteries.
